Bike Shock

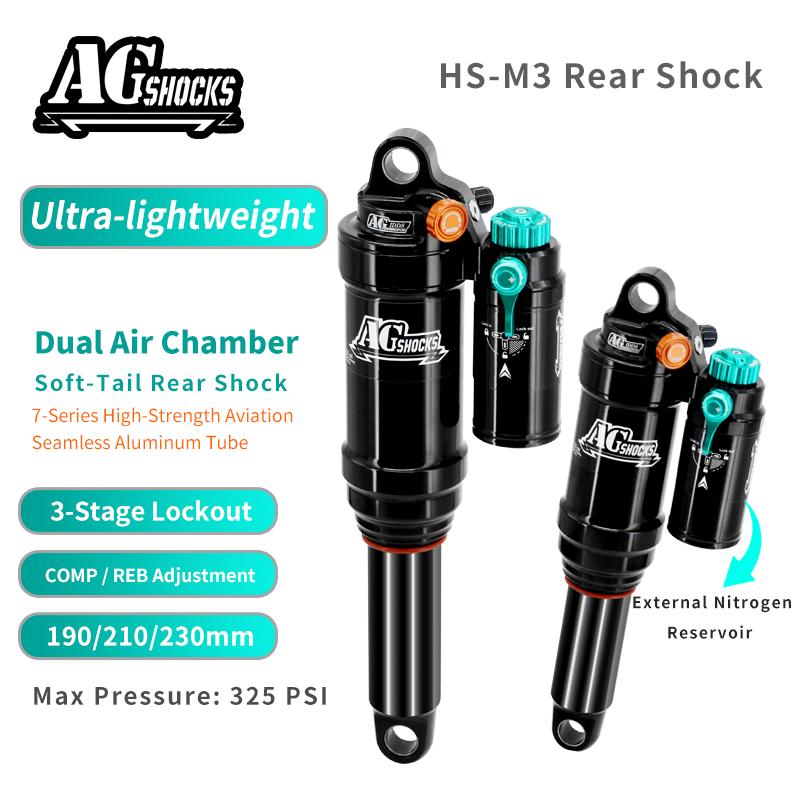

AGShocks HS-M3 Air Rear Shock

In stock

Standard eyelet mount

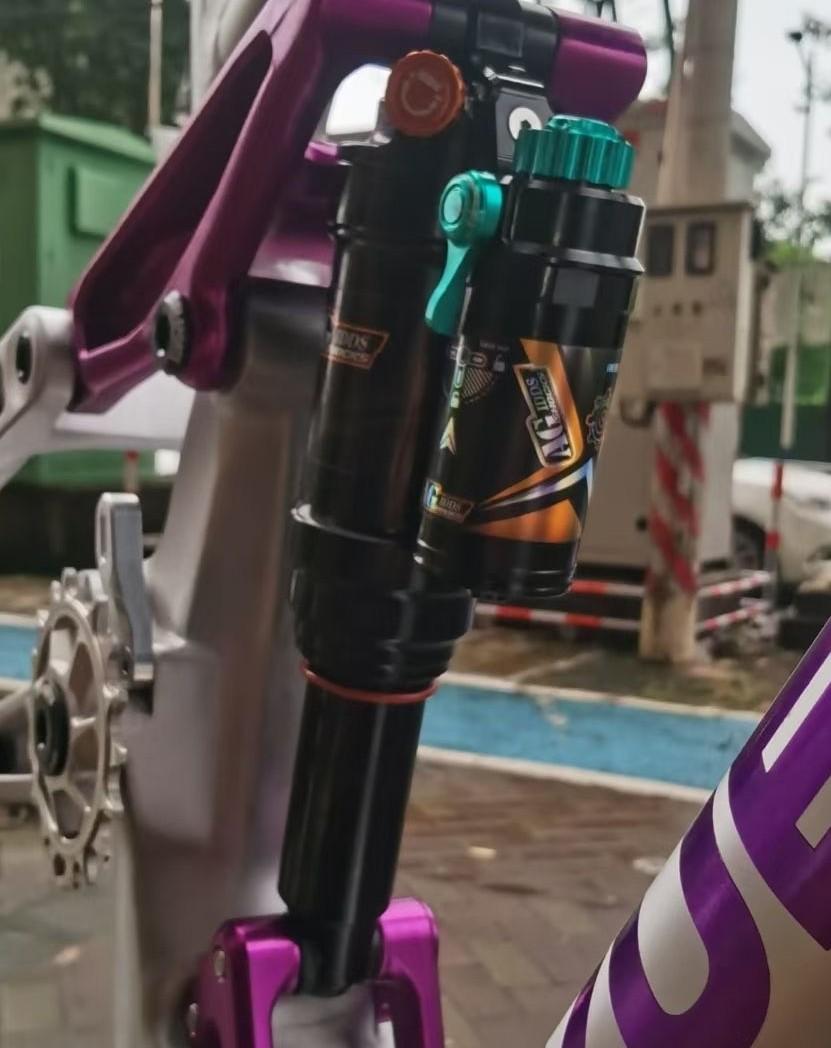

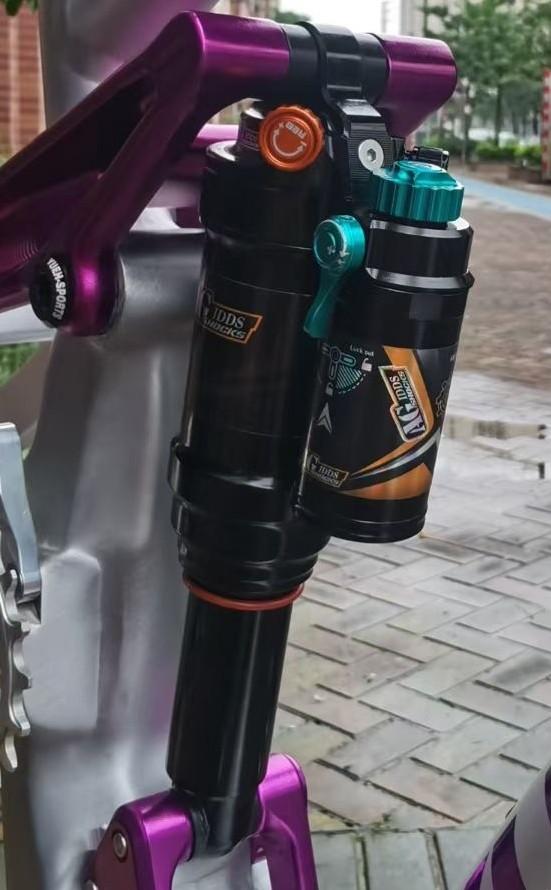

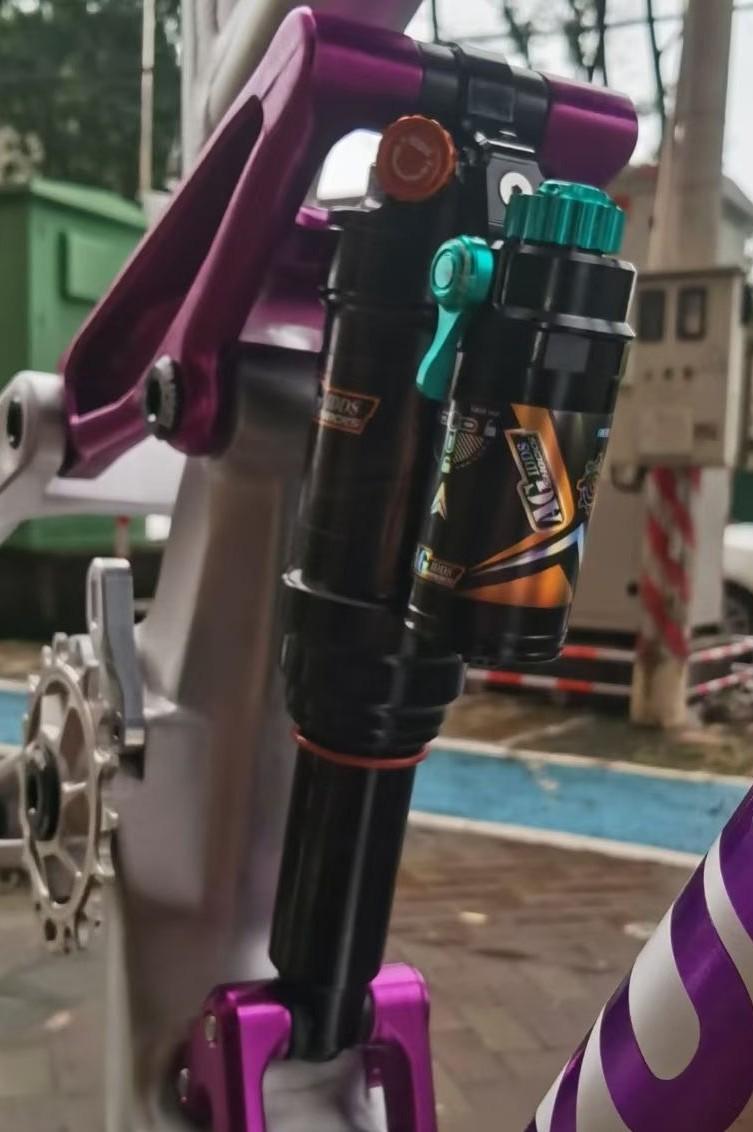

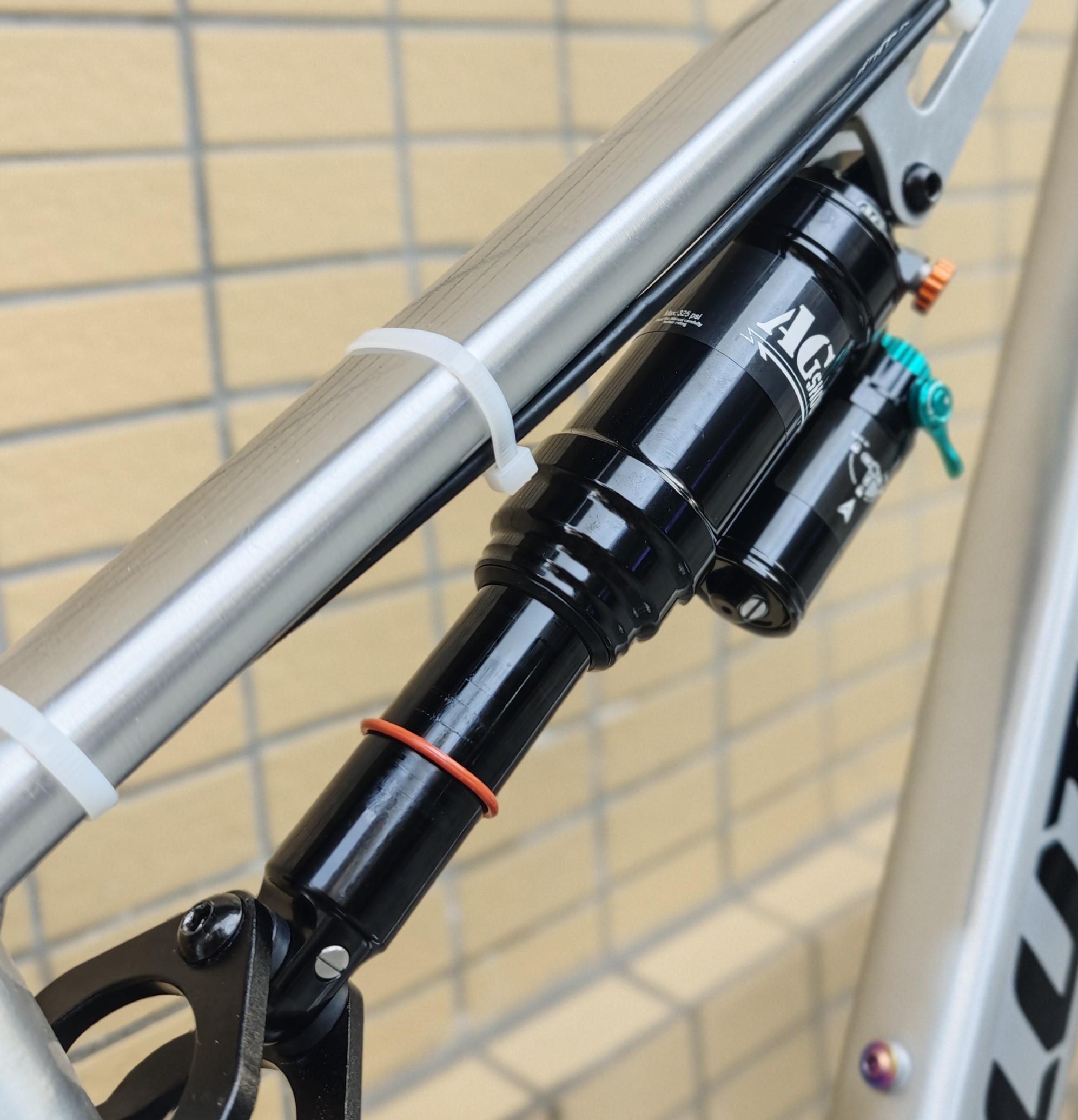

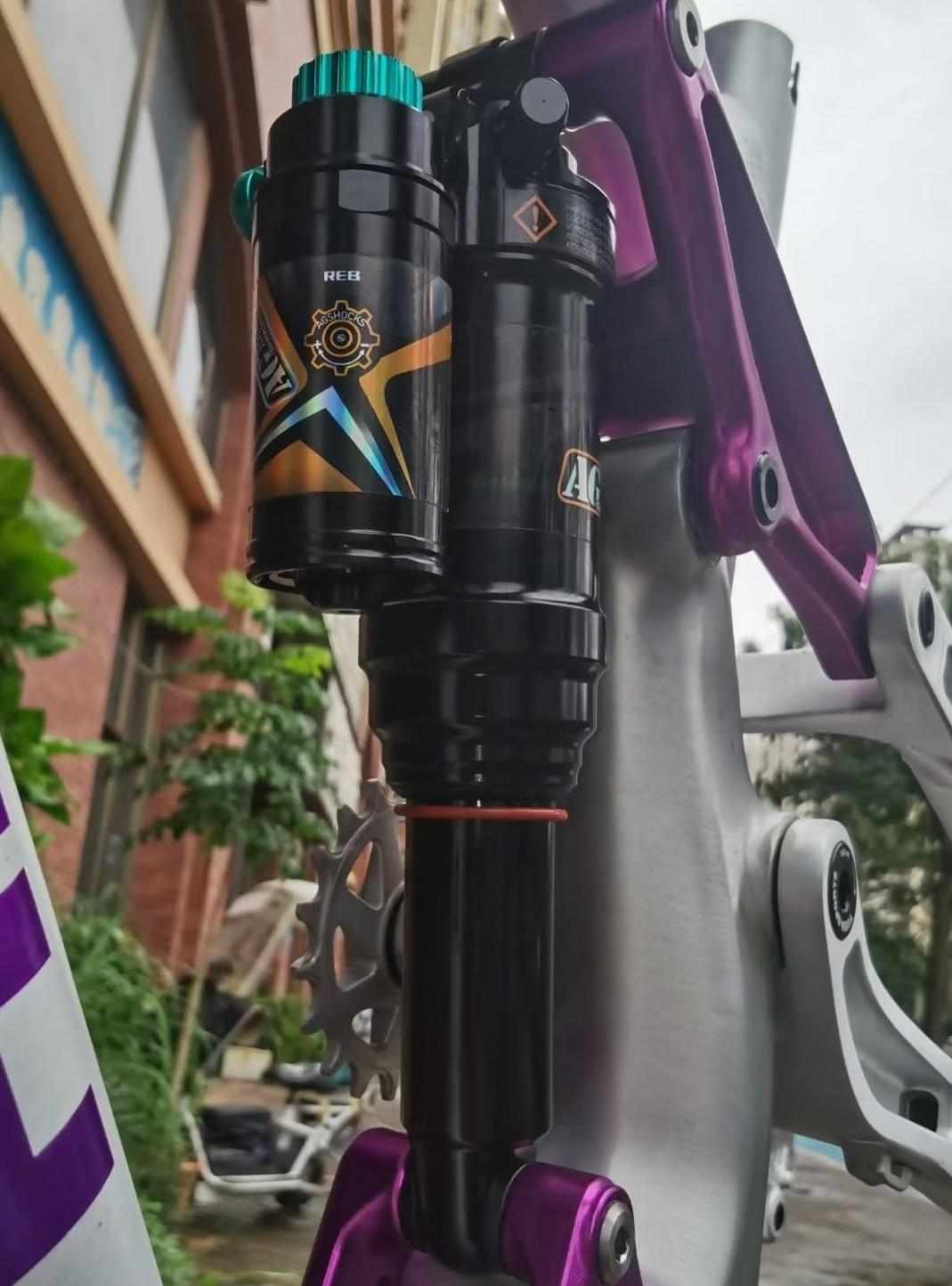

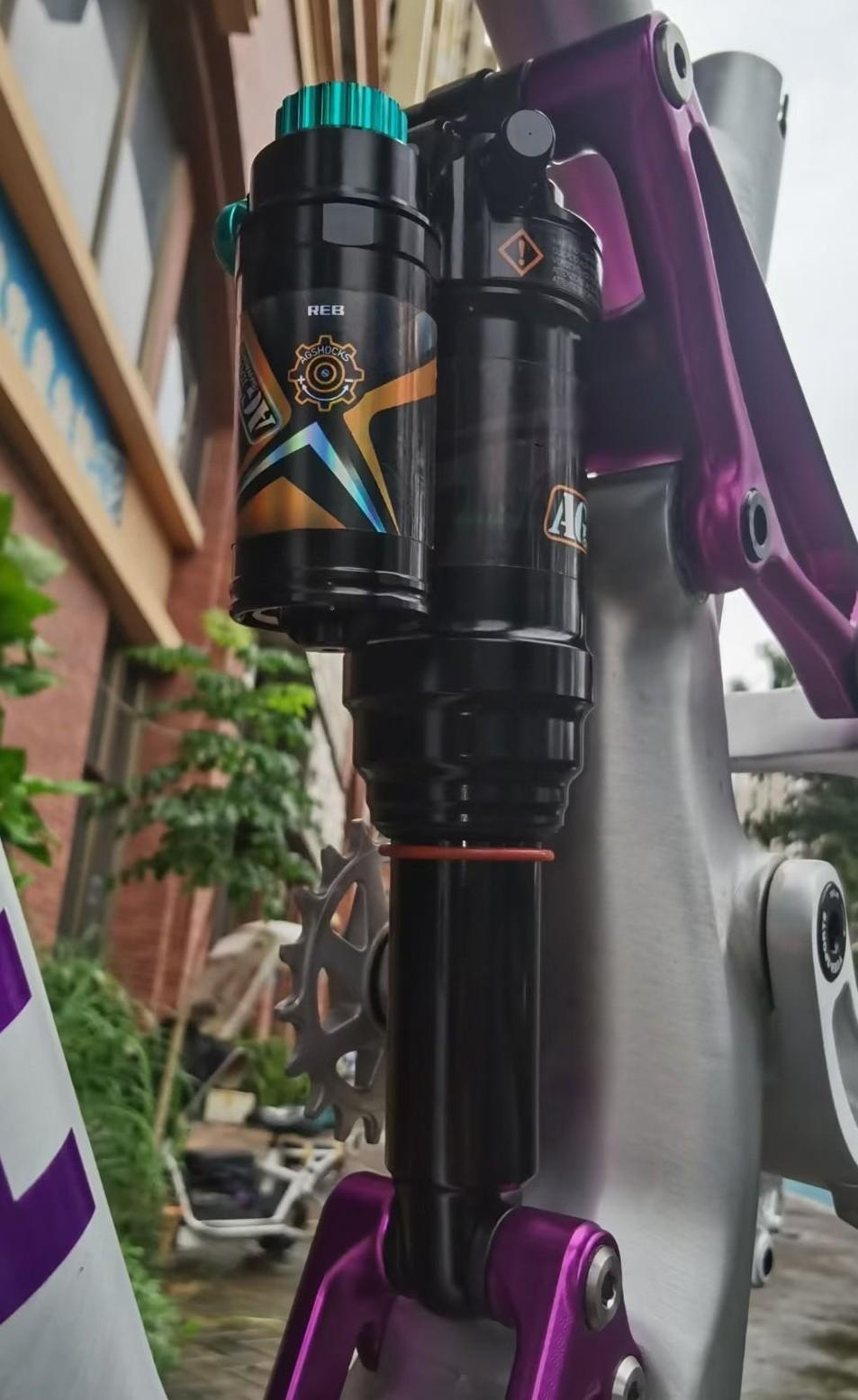

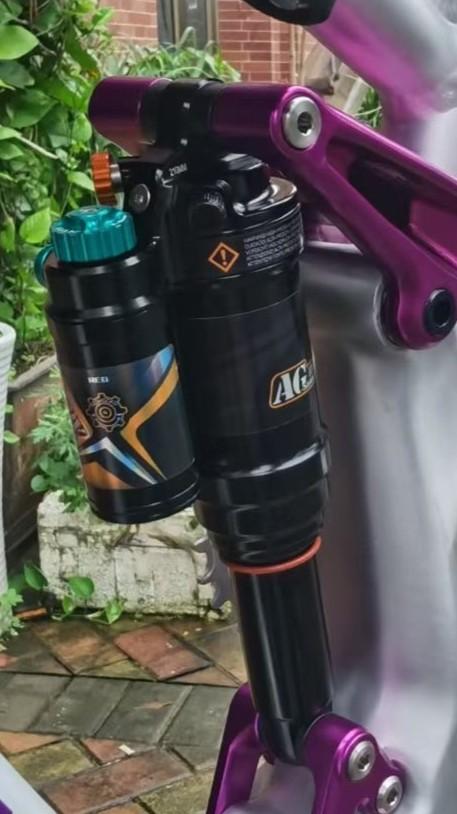

A replacement rear shock for frames that use a standard eyelet mounting interface. The HS-M3 pairs an aluminum body with air-spring setup, rebound adjustment, and a lockout lever for firmer pedaling sections.

Functional features

Tune the shock for your setup.

Air pressure setup

Set spring pressure with a standard shock pump, up to 325 PSI, to suit your preferred setup.

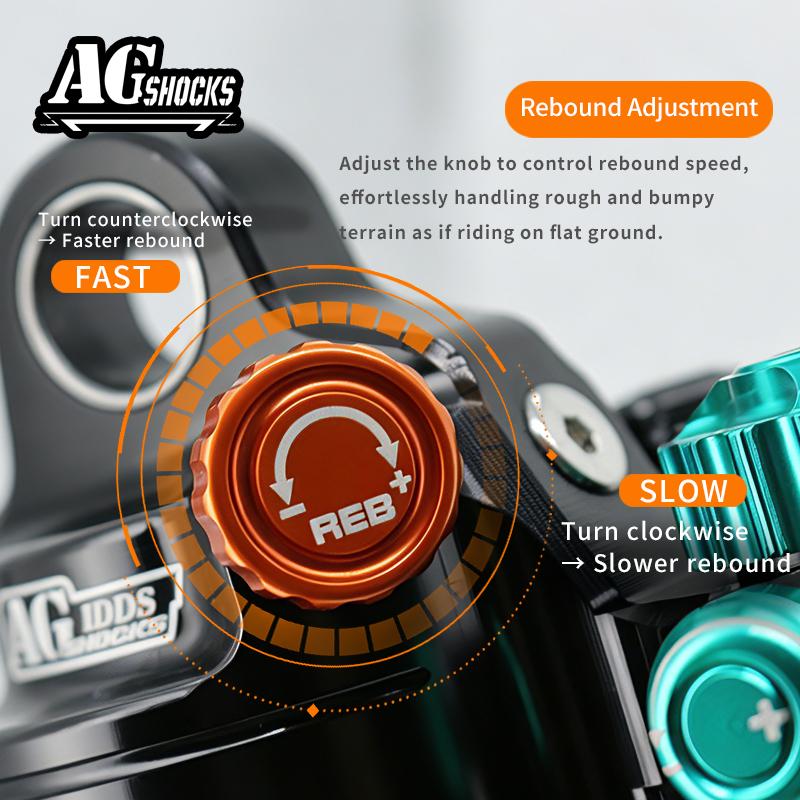

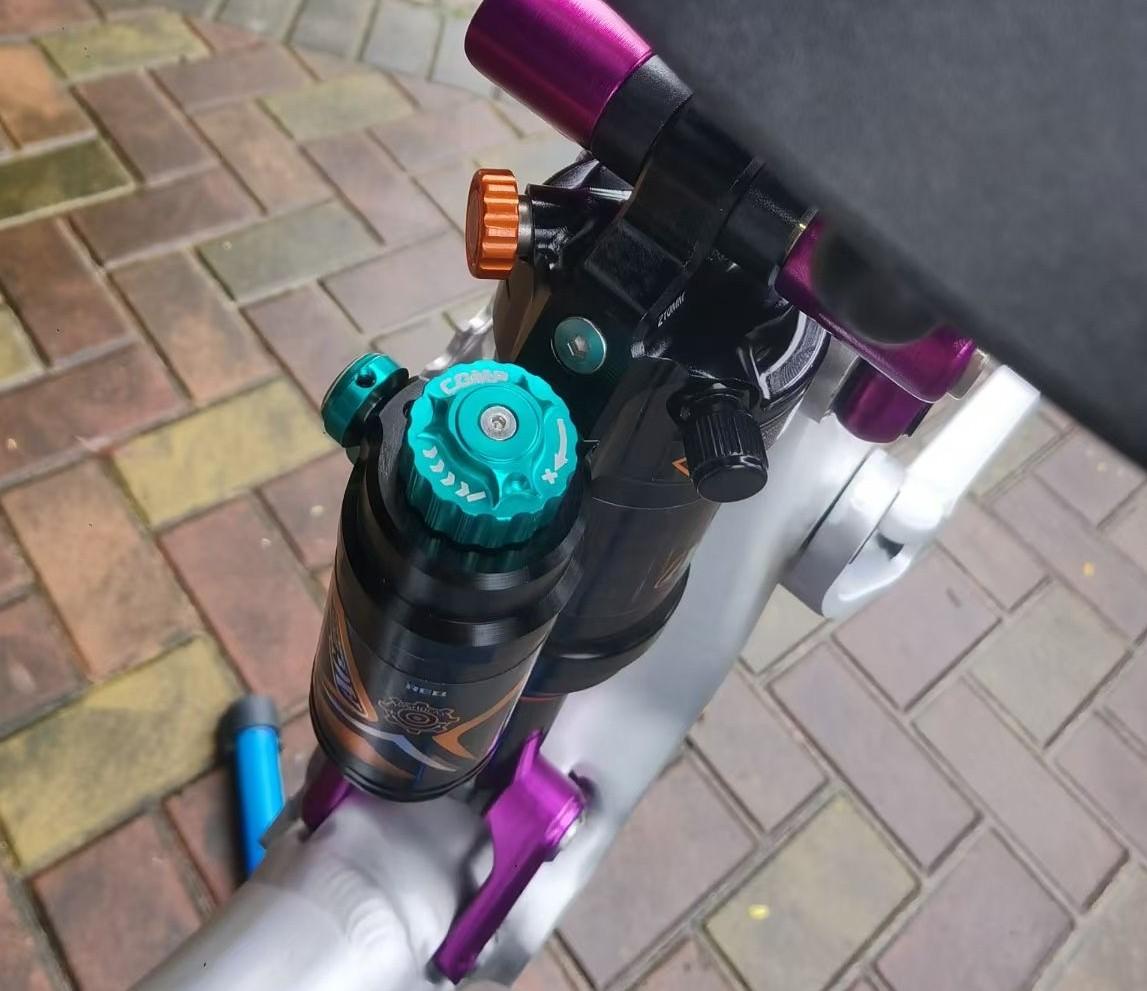

Rebound adjustment

Adjust how quickly the shock returns after compression.

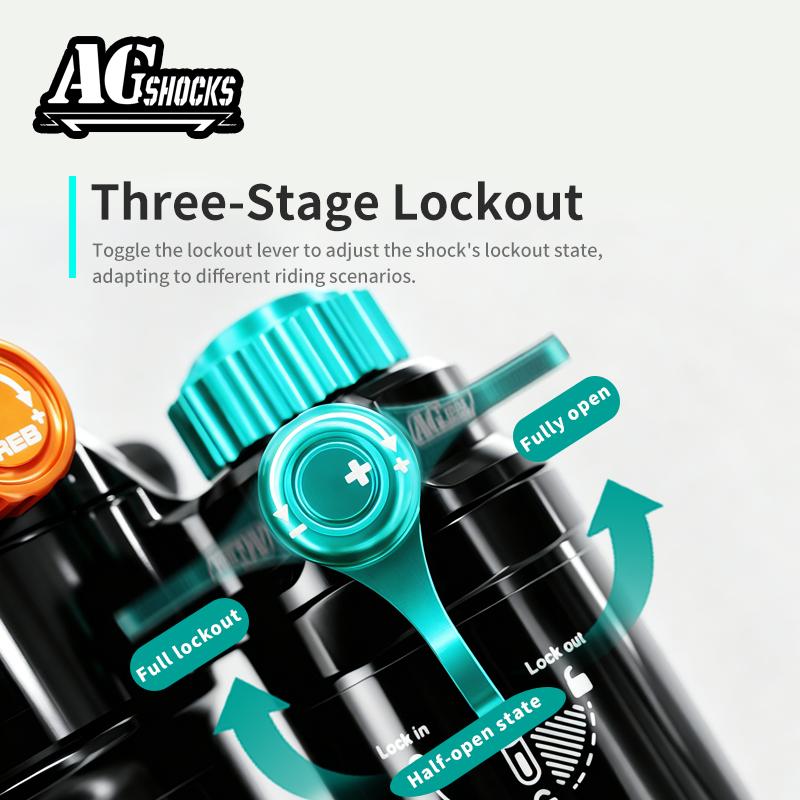

Lockout lever

Firm the shock for smoother or more pedaling-focused sections.

Available sizes

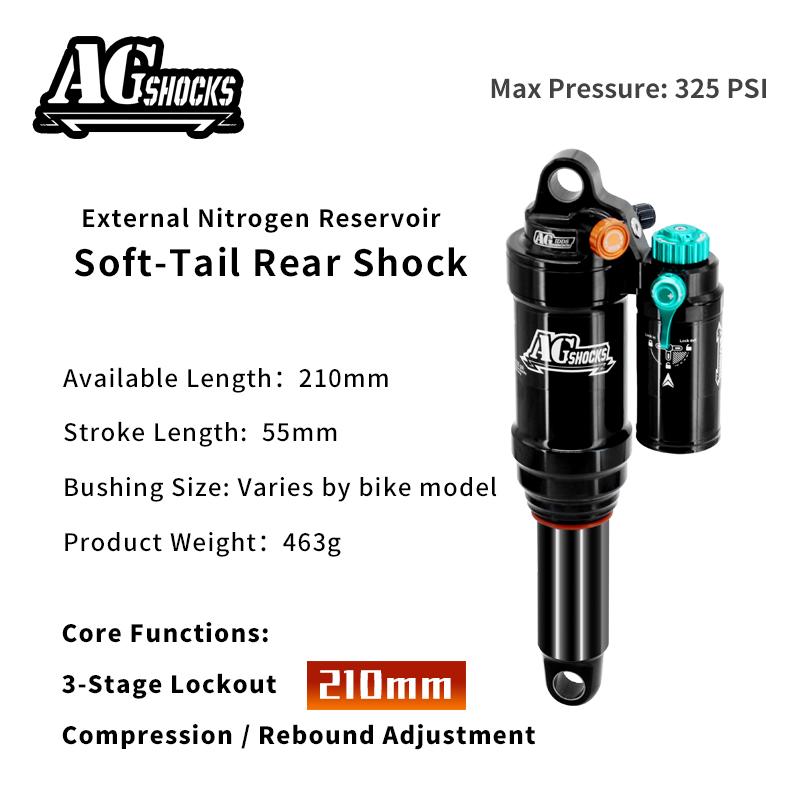

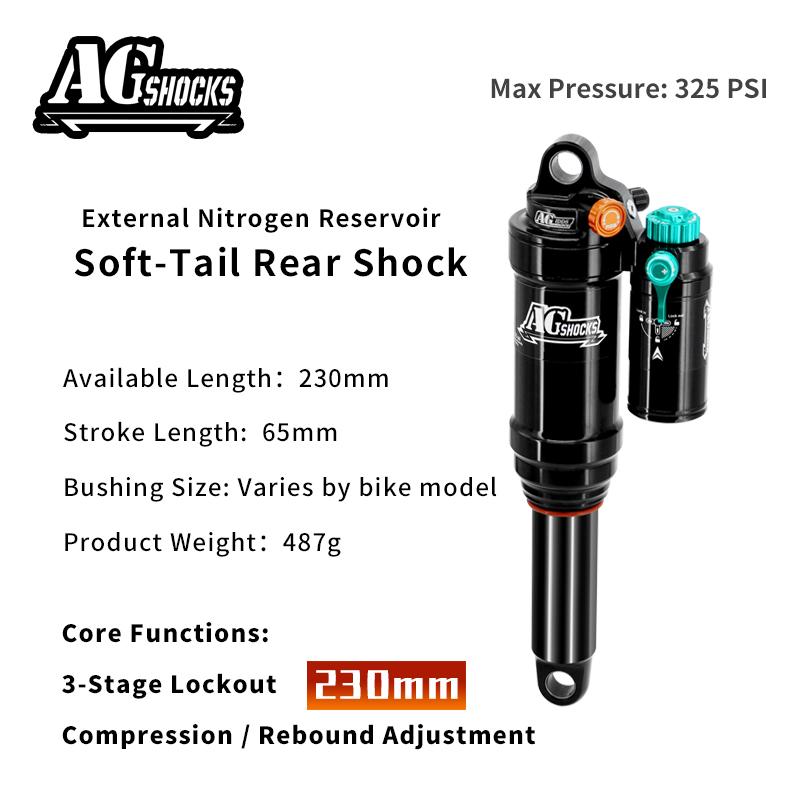

190 x 51 mm210 x 55 mm230 x 65 mm

Mounting hardware

Free hardware pack included.

Mounting hardware pack with bushings and spacers

As a standard eyelet shock, the HS-M3 needs bushing and spacer hardware at both the upper and lower eyelet. Match each mount to your frame's bolt diameter and mounting width; upper and lower widths can differ.

Each shock comes with a free mounting hardware pack in your required width. Available for 8 mm bolts:

8 x 22 mm8 x 24 mm8 x 26 mm8 x 30 mm8 x 32 mm

Existing hardware can be reused only if it matches your frame's bolt diameter and width and is free of wear. Never force hardware that does not install freely. How to measure your hardware.

One-year limited factory replacement warranty

Manufacturing defects arising under normal operation are eligible for factory replacement within 12 months from purchase. Confirm frame specifications with the bike manufacturer before ordering.
